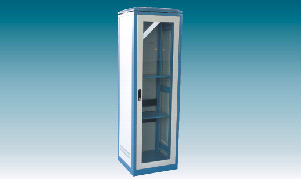

CABINET

CHARACTERISTICS:

•NEW PRODUCTION WHICH CAN BE FREELY ASSEMBLED AND DISASSEMBLED.
•WHOLE BODY SPRAYED STATIC POWDER AND PLASTIC,STEEL-GLASS DOOR.
•FULLY OPEN CONSTRUCTION WHICH CAN BE ASSEMBLED AND DISSEMBLED
AND REPAIRED EASILY
•THE HEIGHT OF INSTALLING PLATE AND RACK CAN BE ADJUSTED RANDOMLY
•TOW SIDE DOORS ARE DESIGNED FOR DISSEMBLING WHICH CAN BE
CONNECTED
•EQUIPED FOUR DIRECTIONAL TRUKLE AND ADJUSTIVE SUPPORTED BOLTS ON
THE BOTTOM.
•WITH ASSEMBING CABLE HOLDER ON THE BOTTOM.

ORDERING INFORMATION:
ITEM NO.	DESCRIPTION	SIZE
LK-CB-40	19"CABINET 40U	600x600x2000(mm)
LK-CB-35	19"CABINET 35U	600x600x1800(mm)
LK-CB-30	19"CABINET 30U	600x600x1600(mm)
LK-CB-20	19"CABINET 20U	600x600x1200(mm)
LK-CB-16	19"CABINET 16U	600x600x1000(mm)
LK-CB-12	19"CABINET 12U	600x600x750(mm)

(1)DIRECTIONAL SCREW	(2)DIRECTIONAL WHEELS
(3)BACK DOOR	(4)THE ROOF
(5)SIDE DOOR	(6)INSTALLATION PILLAR
(7)TOP FAN TRAY	(8)FLOOR PEDESTAL
(9)FRONT DOOR	(10)BOTTOM CONNECTING BOARD
(11)MIDDLE CONNECTING BOARD	(12)TOP CONNECTING BOARD

ASSEMBLING PROCEDURE:

1.FIX FOUR DIRECTONAL WHEELS AND M12X50 DIRECTIONAL SCREWS TO FLOOR PEDESTAL(8)

2.FIX INSTALLATION PILLARS (6) TO FOUR CORNERS OF FLOOR PEDESTAL,THEN USE M8 SCREW TO ONNECT THEM,AND AT LAST TIGHTEN UP THE SCREW.

3.USE SCREW M8 TO CONNECT THE TOP FAN TRAY,THEN TIGHTEN THEM.

4.FIX THE TOP CONNECTING BOARD (12),MIDDLE CONNECTING BOARD (11) AND BOTTOM CONNECTING BOARD (10),THEN USE M6 SCREW TO FASTEN THEM.

5.FIX THE ROOF,THEM USE THE LONG SCREW M6 TO CONNECT FROM THE BOTTOM TO THE TOP.

6.FIX FOUR INSTALLATION STRIP,PAD AND PLATE.

7.TAKE OUT THE SIDE DOOR (5) AND INSERT SQUARE PLASTIC LOCK,THE FIX THE SIDE DOOR.

8.FIX THE BACK DOOR ACCORDING TO ABOVE PROCEDURE.

9.FIX THE FRONT DOOR (9) THE TOP OF WHICH IS DOOR AXLE,INSERT THE TOP FAN TRAY (7) INTO THE CORRESPONDING HOLE. THE BOTTOM IS THE
SHEATH OF DOOR AXLE. INSERT LONG SCREW M6 INTO IT.

NOTE:THE CABINET UNDER 20U HAVE NOT MIDDLE CONNECTING BOARD.
