APPLICATION:
• PATCH CORD IS USED IN NETWORK APPLICATIONS SUCH AS
10BASE-T,100BASE-T,1000BASE-T ETHERNET TECHNOLOGY
TO 100 METERS (328 FEET),AND HAVE BEEN DESIGNED SPECIFICALLY
FOR GIGABIT ETHERNET APPLICATIONS (GIGABIT OVER COPPER).
THEY PERFORM AT HIGH-DATA TRANSFER RATES,AND WORK WITH
ATM AND GIGABIT SPEED PRODUCTS.
• IDEAL FOR CONNECTING COMPUTERS,HUBS,SWITCHES,
PRINTER SERVERS,PATCH PANELS,ETC
INDUSTRIAL STANDARD:
TIA/EIA 568A & B,EN50173,ISO/IEC 11801
TIA/EIA BOLLETIN TSB 67 FOR WIRE REQUIREMENT
TIA/EIA TSB40-A & TSB 36
CERTIFICATION:
UL,C(UL),ETL,3P

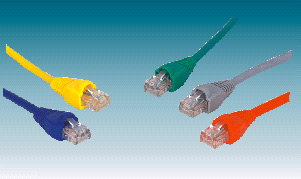

STANDARD COLOR :
GREY,BLUE,RED.GREEN,YELLOW,BLACK,WHITE |
| |
| WIRING: |
|
T568A |
T568B |
CROSS OVER |
| 1-1 WHITE/GREEN |
1-1 WHITE/ORANGE |
1-3 WHITE/ORANGE |
| 2-2 GREEN |
2-2 ORANGE |
2-6 ORANGE |
| 3-3 WHITE/ORANGE |
3-3 WHITE/GREEN |
3-1 WHITE/GREEN |
| 4-4 BLUE |
4-4 BLUE |
4-7 BLUE |
| 5-5 WHITE/BLUE |
5-5 WHITE/BLUE |
5-8 WHITE/BLUE |
| 6-6 ORANGE |
6-6 GREEN |
6-2 GREEN |
| 7-7 WHITE/BROWN |
7-7 WHITE/BROWN |
7-4 WHITE/BROWN |
| 8-8 BROWN |
8-8 BROWN |
8-5 BROWN |
| S-S SHIELDING |
S-S SHIELDING |
S-S SHIELDING |
| |
| CABLE SPECIFICATION: |
| A) UTP |
24AWG(7/0.2MM) OR 26AWG (7/0.16MM) |
| B) FTP |
26AWG(7/0.16MM) |
| C) SFTP |
26AWG(7/0.16MM) |
| D)PiMF |
26AWG(7/0.16MM) | |
|
|
