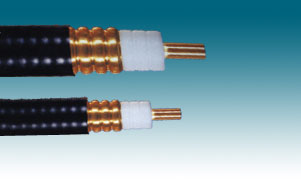

A)1/2'' RF Coaxial Cable HCAAY-50-12
Structure Dimension
| Item |
Diameter |
Material |
| Inner Conductor |
4.8 mm |
Copper clad aluminum wire or copper wire |
| Insulator |
12.3 mm |
Foamed polyethylene |
| Outer Conductor |
13.9 mm |
Annular corrugated copper tube |
| Jacket |
16.0 mm |
Polyethylene | Mechanical Characteristics
| Item |
Specification |
Remarks |
| Static Minimum Bending Radius |
70 mm |
Single bend |
| Dynamic Minimum Bending Radius |
120 mm |
Repeat for 15 times |
| Tensile Strength |
1200 N |
|
| Cable Weight |
250kg/km |
| Electrical Characteristics
| Item |
Specification |
Remarks |
| Characteristic Impedance |
50㊣1次 |
|
| Velocity |
88ㄔ |
Nominal value |
| Minimum Insulation Resistance |
5000M次.km |
DC 500V 1 minute |
| Capacitance |
76pF/m |
Nominal value |
| Dielectric Strength |
DC4000V |
1 minute |
| Inner Conductor DC Resistance |
1.6次/km |
At 20⊥ |
| Outer Conductor DC Resistance |
1.9次/km |
At 20⊥ |
| Peak Power Rating |
40kW |
|
| RF Peak Voltage |
1800V |
|
| VSWR Typical Value |
1.15 |
10M-3000MHz |
| |
1.08 |
800M-1000MHz |
| |
1.08 |
1700M-2000MHz |
| |
1.08 |
2100M-2400MHz | Attenuation & Average Power Rating
| Frequency MHz |
Attenuation dB/100m |
Average Power kw |
Frequency MHz |
Attenuation dB/100m |
Average Power kw |
| 10 |
0.65 |
13.0 |
1800 |
9.96 |
0.857 |
| 100 |
2.12 |
3.94 |
1900 |
10.27 |
0.828 |
| 150 |
2.61 |
3.20 |
2000 |
10.57 |
0.809 |
| 200 |
3.04 |
2.75 |
2100 |
10.87 |
0.784 |
| 300 |
3.76 |
2.23 |
2200 |
11.16 |
0.767 |
| 450 |
4.66 |
1.80 |
2400 |
11.72 |
0.730 |
| 500 |
4.93 |
1.71 |
2500 |
12.00 |
0.713 |
| 700 |
5.91 |
1.45 |
2700 |
12.55 |
0.684 |
| 800 |
6.35 |
1.33 |
3000 |
13.33 |
0.645 |
| 900 |
6.78 |
1.25 |
4000 |
15.75 |
0.543 |
| 1000 |
7.18 |
1.18 |
5000 |
18.00 |
0.476 |
| 1500 |
8.99 |
0.947 |
6000 |
20.06 |
0.426 |
| 1700 |
9.64 |
0.884 |
8000 |
23.91 |
0.358 |
B)7/8'' RF Coaxial Cable HCTAY-50-22
Structure Dimension
| Item |
Diameter |
Material |
| Inner Conductor |
9.0 mm |
Steel tube |
| Insulator |
22.0 mm |
Foamed polyethylene |
| Outer Conductor |
25.0 mm |
Annular corrugated copper tube |
| Jacket |
28.0 mm |
Polyethylene | Mechanical Characteristics
| Item |
Specification |
Remarks |
| Static Minimum Bending Radius |
120 mm |
Single bend |
| Dynamic Minimum Bending Radius |
250 mm |
Repeat for 15 times |
| Tensile Strength |
1800 N |
|
| Cable Weight |
550kg/km |
| Electric Characteristics
| Item |
Specification |
Remarks |
| Characteristic Impedance |
50㊣1次 |
|
| Velocity |
88ㄔ |
Nominal value |
| Maximum Insulation Resistance |
5000M次.km |
DC 500V 1 minute |
| Capacitance |
76pF/m |
Nominal value |
| Dielectric Strength |
DC10000V |
1 minute |
| Inner Conductor DC Resistance |
1.04次/km |
At 20⊥ |
| Outer Conductor DC Resistance |
1.05次/km |
At 20⊥ |
| Peak Power Rating |
90KW |
|
| RF Peak Voltage |
3200V |
|
| VSWR Typical Value |
1.15 |
10M-3000MHz |
| |
1.08 |
800M-1000MHz |
| |
1.08 |
1700M-2000MHz |
| |
1.08 |
2100M-2400MHz | Attenuation & Average Power Rating
| Frequency MHz |
Attenuation dB/100m |
Average Power Kw |
Frequency MHz |
Attenuation dB/100m |
Average Power Kw |
| 10 |
0.34 |
28.0 |
1800 |
5.63 |
1.79 |
| 100 |
1.17 |
8.6 |
1900 |
5.81 |
1.71 |
| 150 |
1.45 |
7.0 |
2000 |
5.98 |
1.68 |
| 200 |
1.69 |
6.0 |
2100 |
6.15 |
1.63 |
| 300 |
2.10 |
4.83 |
2200 |
6.32 |
1.59 |
| 450 |
2.61 |
3.88 |
2400 |
6.68 |
1.50 |
| 500 |
2.76 |
3.67 |
2500 |
6.80 |
1.47 |
| 700 |
3.31 |
3.02 |
2700 |
7.11 |
1.41 |
| 800 |
3.57 |
2.83 |
3000 |
7.57 |
1.33 |
| 900 |
3.81 |
2.65 |
3400 |
8.22 |
1.22 |
| 1000 |
4.04 |
2.50 |
4000 |
9.07 |
1.10 |
| 1500 |
5.08 |
1.99 |
5000 |
10.40 |
0.96 |
| 1700 |
5.45 |
1.85 |
|
|
|
C)1-1/4'' RF Coaxial Cable HCTAY-50-32;
D)1-5/8" RF coaxial cable HHTAY-50-42
E)1/4" RF coaxial cable HCTAU-50-17
F)3/8" RF coaxial cable HCAAY-50-8
G)1/4"S RF coaxial cable HRY-50-5
F)1/2"S RF coaxial cable HRCAY-50-9
H)3/8"S RF coaxial cable HRCAY-50-7
Packing: 100M/wooden drum or 500M/wooden drum
|
